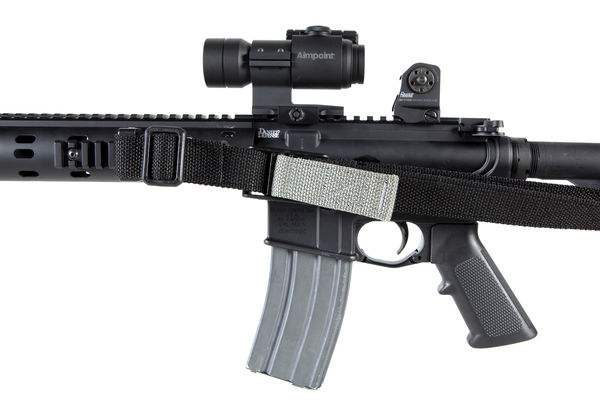

Developed with the modern sporting rifle owner in mind, the ACO is ready to mount and shoot directly out of the box. A 30mm aluminum alloy sight tube is paired with a rugged fixed height mount designed to provide absolute co-witness with AR-15 backup iron sights.
The ACO utilizes a two Minute of Angle(2 MOA) red dot to allow maximum target acquisition speed and accuracy at all distances. Aimpoint exclusive ACET technology allows for up to one year of constant-on use from a single DL1/3N battery. With a completely waterproof housing, the sight can be used in almost all environmental conditions.
Customize for Specific Requirements
With a full selection of branded accessories available, the ACO offers many options to fit nearly every user requirement. Some popular accessories include front and rear flip covers, an anit-reflection filter and spare battery holders.
Unique features for Aimpoint® Carbine Optic
•Up to 1 year of constant-on use on a single DL1/3N battery
•Completely waterproof
•2 Minute of Angle(2 MOA) red dot
•Designed specifically for modern sporting rifles
•Ready to mount directly out of the box
•Fixed height mount included – providing absolute co-witness with AR-15 backup iron sights
•Full line of accessories available
•Legendary Aimpoint quality and ruggedness at an entry level price point
Standard features for all Aimpoint® sights
•Unlimited field of view
•Parallax-free and unlimited eye relief
•Unaffected by extreme weather conditions
•Rugged, durable construction
•No hazardous materials
•No laser emission that could be harmful to your eyes
•Increased aiming confidence

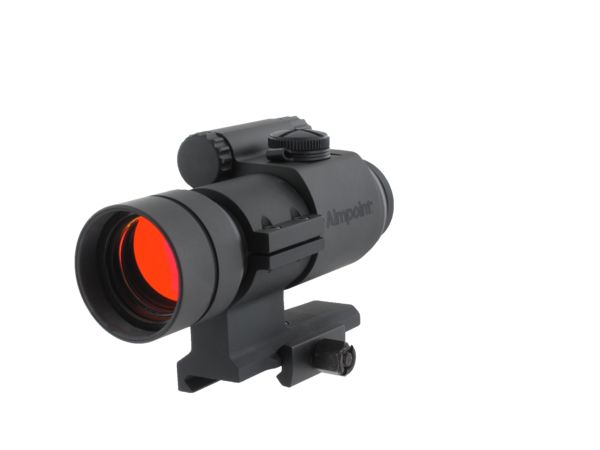

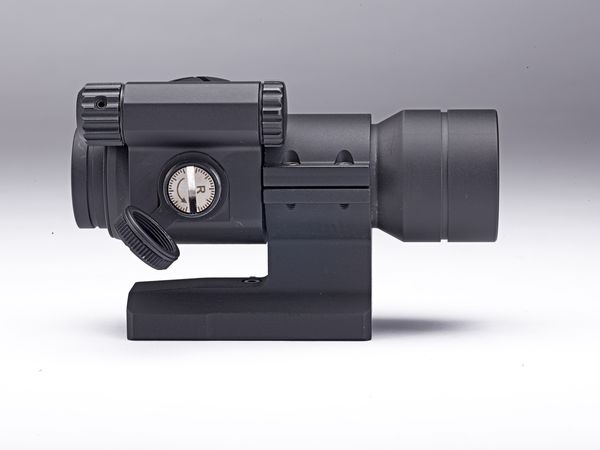

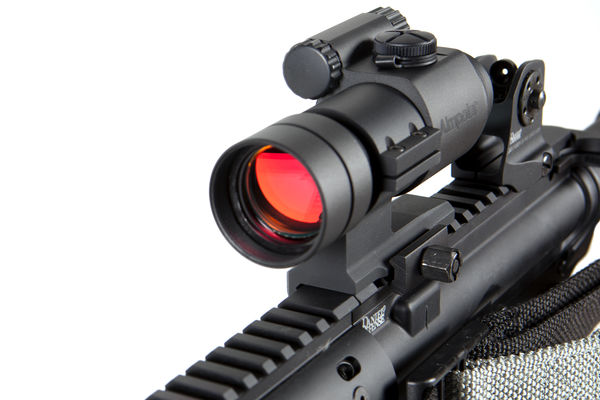

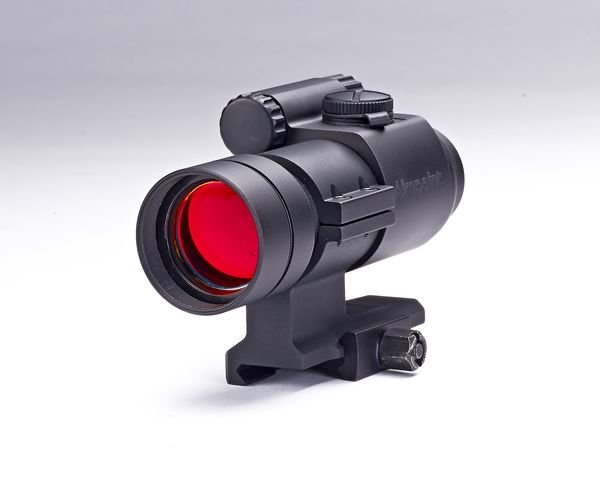

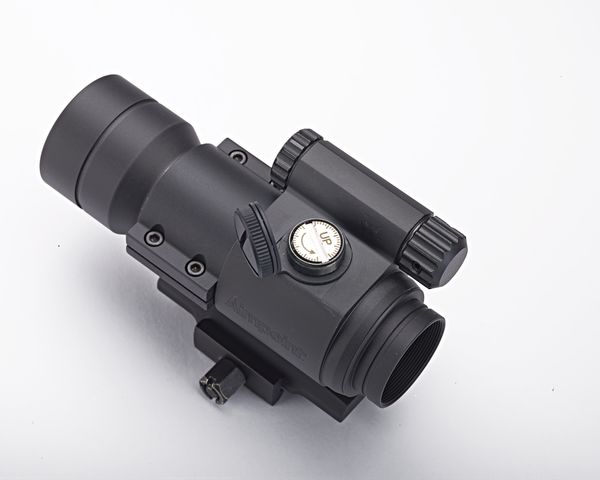

Aimpoint® ACO
| GENERAL DATA | |
| Article number | 200174 |
| Technology | ACET (Advanced Circuit Efficiency Technology) |
| Working principle | Reflex collimator sight - red dot sight |
| OPTICAL DATA | |
| Lightsource | LED (Light Emitting Diode) totally eye-safe |
| Lightsource wavelength | 650 nm red light |
| Red dot size in MOA (minute of angle)* | 2 |
| Parallax | Absence of parallax - No centering required |
| Eye relief | Unlimited |
| Night vision compatibility | No |
| Anti-reflex coating all surfaces & multi-layer coating objective lens | Yes |
| Magnification | No magnification (1X) |
| ELECTRONIC DATA | |
| Battery | One 3V Lithium battery, type 2L76 or DL1/3N |
| Battery life in hours ** | 10,000 (over 1 year of continuous use) |
| Dot intensity adjustment | Manual rotary switch |
| Daylight (DL) settings | 10 (1 off and 9 low light/DL) |
| NVD settings | 0 |
| MECHANICAL DATA | |
| Material housing | Extruded high strength aluminum |
| Surface finish | Anodized, semi-matte |
| Color housing | Dark graphite grey |
| Adjustment 1 click | 13mm at 100m, (1/2” at 100yds) |
| Mounting methods | 1 ring, ø 30mm, (1.18”) |
| ENVIROMENTAL DATA | |
| Temperature range | -29° - +60° C, (-20° - +140° F) |
| Water resistance - submersible to | Waterproof |
| Radioactive components used | None |
| DIMENSIONS | |
| Length | 130mm, (5.1”) |
| Width/height sight only | 55 x 55mm, (2.2” x 2.2”) |
| Maximum ring width | 30mm, (1.18”) |
| Objective diameter | 38mm, (1.5”) |
| Tube diameter | 30mm, (1.18”) |
| Weight sight only | 220g, (7.8oz)**** |
| Weight rubber cover | 50g, (1.7oz) |
* 1 MOA ˜ 30 mm at 100 meters ˜ 1” at 100 yards.
** at room temperature & at setting 7 out of 10.
*** Night Vision Device.
**** Dimensions and weight for CompM2, ML2, M3, ML3 are given with flip-up lens covers.
Specifications are subject to change without notice.
