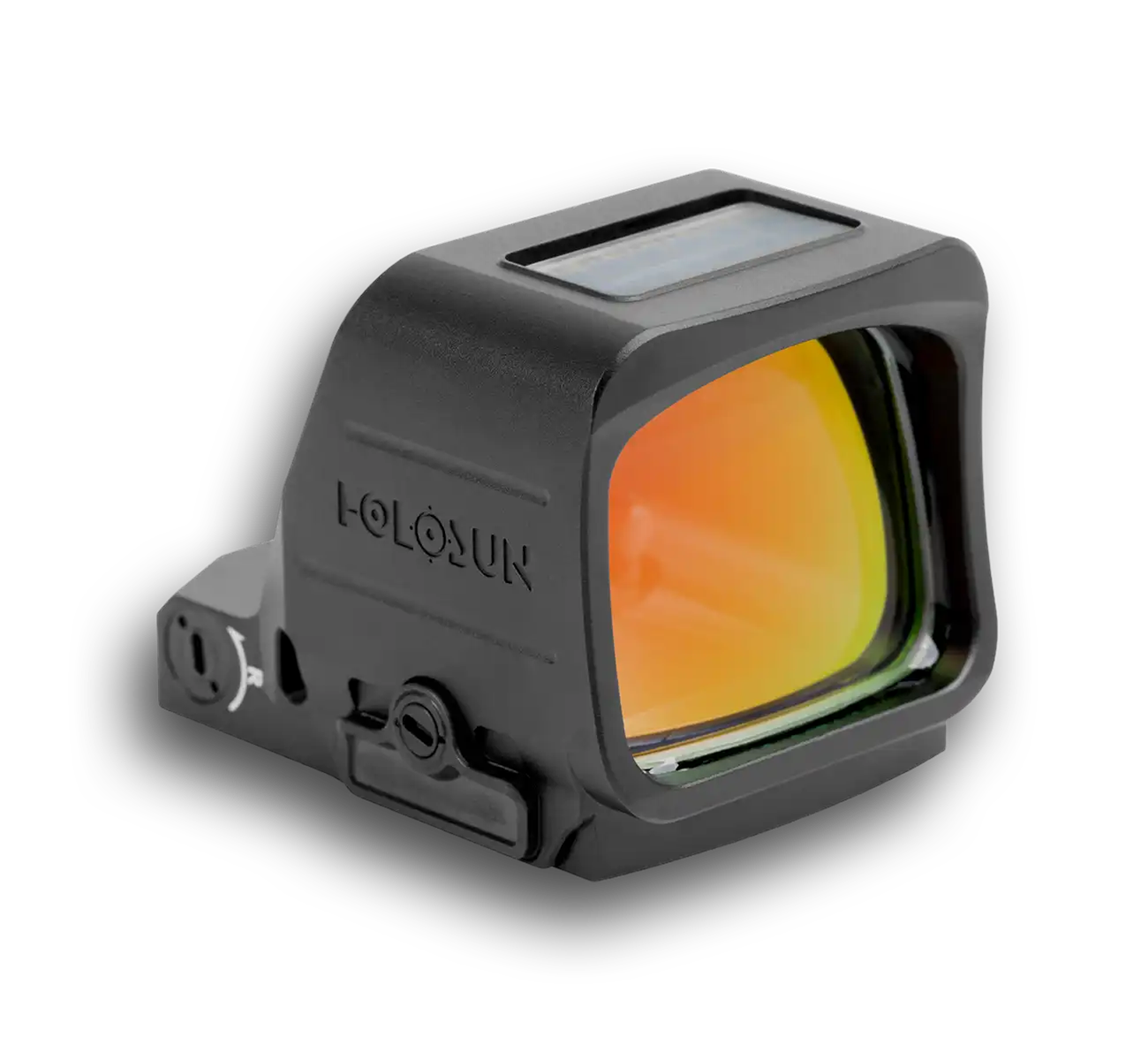

Holosun Technologies 507 Pro Max Red Dot

Performance Reticle System
Selectable reticle system featuring a 2 MOA dot with optional 8, 20, or 32 MOA circles for speed or precision shooting.

Red Super LED Technology
650nm red emitter delivers a bright, efficient reticle with excellent clarity in varying lighting conditions.

Expanded Competition Viewing Window
Large 1.18 × 0.98 inch window provides a wider field of view for faster transitions and improved target tracking.

Integrated Forward Sunshade
Forward leaning sunshade reduces glare and preserves reticle clarity in bright shooting environments.

Solar Failsafe System
Solar panel provides automatic brightness assistance and backup power in changing lighting conditions.

Shake Awake Technology
Motion activation instantly powers the optic on and powers down during inactivity to conserve battery life.

Manual Brightness with Lockout Mode
Brightness controls include memory and lockout functions to prevent accidental adjustments during competition.

Side Mounted Battery Tray
CR1632 battery compartment allows quick replacement without removing the optic from the slide.

7075-T6 Aluminum Housing
Hard anodized aluminum construction delivers durability and strength for demanding competition use.

RMR Footprint Compatibility
Industry standard RMR footprint allows direct mounting to a wide range of optics ready pistol slides.

Direct Mount -  RMR Footprint

IN the Box

Lens Cloth

‍
Multi-Tool

‍
Manual

‍
Warranty Card

Specs-

Selectable Reticle

Yes

Solar Power

Yes

Shake Awake Technology

Yes

Auto Off

Yes

Memory

Yes

Manual Brightness

Yes

Automatic Brightness

No

Lockout Mode

Yes

OPTICAL DATA

Light Source

LED

Wavelength

650nm

Reticle

2 MOA Dot & 8/20/32 MOA Circle

Magnification

1x

Parallax

No

Unlimited Eye Relief

Yes

Multi-Coatings

Yes

ELECTRONIC DATA

Battery

CR1632

Battery Life (Setting 6)

50,000 Hours

Brightness Setting

8 Daylight & 4 NV

Removable Battery

Yes

Battery Location

Side Tray

MECHANICAL DATA

Housing Material

7075 T6 Aluminum

Surface Finish

Anodized

Housing Color

Black

Adjustment Per Click

1 MOA

W&E Travel Range

±30 MOA

Storage Temperature

-40°C~70°C

Working Temperature

-30°C~60°C

Submersion

IP67

Vibration

5000G

PHYSICAL DATA

Window Size

1.18" × 0.98"

Body Dimensions

1.8" × 1.4" × 1.38"

Body Weight

1.7 oz
