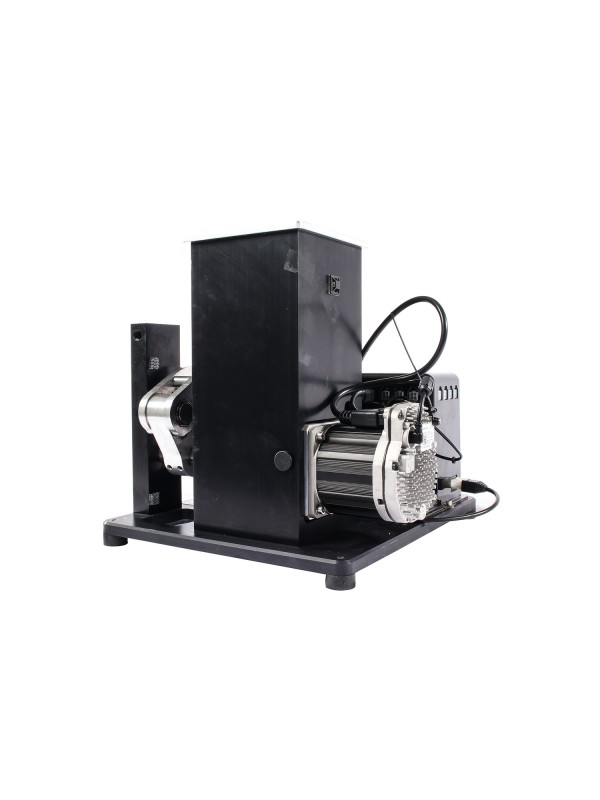

Lyman Mark 7 Dillon 650 PRO Autodrive

Other products by Lyman Products
  • Item #:  101-1017-01-01
Reg. Price: $2,149.99
Our Price: $2,149.99
2 units available
- +

    • Includes the Mark 7 Optical Decapping Sensor - a $200 value
    • AUTOMATES THE DILLON CP2000/RL1100/1050/ AND 650 SERIES (Dillon machine is not included.)
    • 4 user selectable speeds from 900 to 1,800 rounds per hour
    • Includes pre-loaded 10" High Resolution tablet - no control boxes!
    • Includes heavy duty tablet holder
    • Completely compatible with Mr. Bulletfeeder and GSI bulletfeeders
    • Broad caliber capacity - able to load a wider array of calibers including larger rifle calibers
    • Small footprint
    • Digital clutch - adjustable on-the-fly from 0 to 20
    • Digital primer depth setting - no more guessing !
    • Digital jog and immediate stop
    • Microprocessor monitored and controlled
    • Features monitored by tablet
    • Downloadable software upgrades for life
    • Supports a variety of accessories
    • User-configurable Dwell time at the top of the stroke
    • Easy Installation
    • Pre-assembled and shipped ready to use
    • CNC grade planetary gearbox
    • Full warranty
    • High torque motor - same available torque to machine as the 1050 X Autodrive
    • This unit operates at 110v and at 50 Hz with no appreciable variation in speed or performance


Dimensions and Capacity
    • Overall machine dimensions are 49" tall (124.4 cm) X 14" (35.5cm) wide x 12" (30.5cm) deep
    • True operational height: earlier machines 52.5", later machines 48.5"
    • Quite operation approximately at 75-80 dB including case and bullet feeder


650 Autodrive Specifics
    • CNC billet heavy-duty crank
    • High torque output
    • Mounted on heavy-duty baseplate
    • In-line direct-drive operation helps ensure equal amounts of pressure applied to the 650 ram / operation
    • Does not include the Dillon Precision XL650 reloading press
    • Completely compatible with the leading bullet feeders on the market

Special Note
    • If you have an older 650 press please determine which platform assembly you have.  If you have the older platform assembly please upgrade your unit to the more recent version ($94) which is Dillon Part # 22060.


*Loading press, bulletfeeder, sensors, and other accessories in picture above sold separately*
