Apex M&P Shield Duty/Carry Action Enhancement Trigger and Kit

  • Item #:  100-051
Reg. Price: $159.95
Our Price: $151.95
The product is currently out of stock.
What It Does
This kit is a combination of the Apex Shield Duty/Carry Action Enhancement Kit and the Apex Shield Action Enhancement Trigger. The Trigger Kit directly replaces the factory hinged trigger with a solid aluminum trigger body which reduces pre-travel and over-travel by approximately 20%. It features a smooth face with a center mounted pivoting safety that maintains factory safety values.

The APEX Shield Carry Kit was designed to provide the M&P Shield pistol owner a smooth, consistent trigger pull that is approximately 2 lbs lighter (based on variations in factory tolerances) with the advantages of shorter over-travel and more detectable trigger reset. The kit itself is engineered to be drop-in and should not require further gunsmithing. However, armorer or gunsmith installation of the Ultimate Striker Block (USB) into the Shield slide is strongly recommended**.


Expected Results
– Reduces trigger pull by approximately 2 lbs.
– Smooth uptake and reset
– Reduces pre-travel
– Reduces over-travel
– Reduced reset
– Center mounted pivoting safety maintains factory safety values


Applicable To What Gun(s)
Works with all Smith & Wesson M&P Shield Pistols in 9mm and .40 calibers.

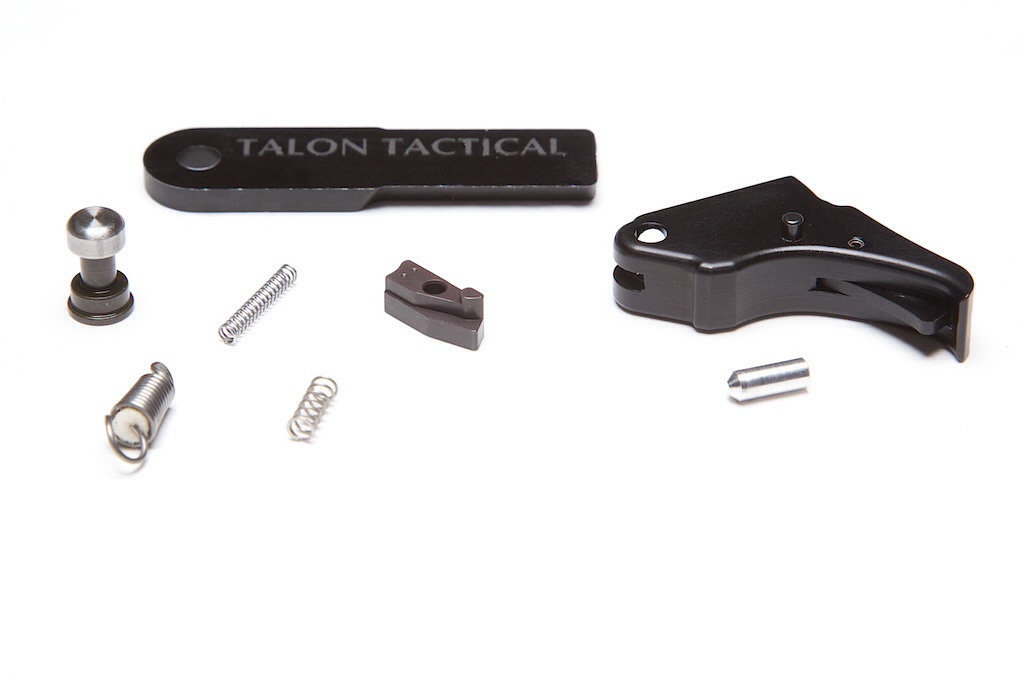

In The Package
1 ea. Aluminum Shield Action Enhancement Trigger
1 ea. Trigger Return Spring Installation Shield Slave Pin
(to assist with trigger return spring installation)
1 ea. Fully machined .45 Sear
1 ea. Ultimate Striker Block Kit
1 ea. Ultimate Striker Block
1 ea. Striker Block Spring
1 ea. Talon Tactical tool
1 ea. Shield Carry Spring Set
1 ea. Sear Spring (1/8")
1 ea. 4 lb Rated Trigger Return Spring

Installation Resources
Shield Trigger Bar Install PDF – This is the recommended process for installing the trigger bar in an Apex replacement trigger for the S&W M&P Shield.





You may need to make an adjustment to the trigger bar loop for proper function. If you should need to tune your trigger bar, please follow the instructions on the following video: Trigger Bar Loop Adjustment Video

Notes
If you are interested in a replacement trigger for the M&P Shield, please see the Shield Duty/Carry Action Enhancement Trigger and Kit. For further information regarding the trigger itself, please see Shield Action Enhancement Trigger.

**The Shield sight removal in order to install the USB Kit is extremely difficult. Removal requires delicate precision so as not to damage the sights or slide. We highly recommend having a competent gunsmith perform this task.

Apex Tactical Specialties offers this service for $35.00 (labor only), plus $17.50 return shipping. If you decide to have Apex perform this service, mail in the slide portion ONLY of your Shield. You may mail it directly to us via USPS, UPS, or FedEx. Please refer to our Services menu for more information.

You may need to make an adjustment to the trigger bar loop for proper function. If you should need to tune your trigger bar, please follow the instructions on the following video, Trigger Bar Loop Adjustment.
